Systemd Services

The ROVO3 uses systemd services for automatic startup of ROS2 nodes.

Install Startup Services:

ros2 run rovo_autostart startup_installer.py

Service Management:

Services can be managed via the webserver or command line:

# Check service status
sudo systemctl status rovo_platform.service

# Start a service
sudo systemctl start rovo_platform.service

# Stop a service
sudo systemctl stop rovo_platform.service

# Enable service at boot
sudo systemctl enable rovo_platform.service

# Disable service at boot
sudo systemctl disable rovo_platform.service

Available Services:

Service

Description

rovo_platform.service

Platform driver (CAN, odometry, IMU)

rovo_webserver.service

Web control interface

rovo_controller.service

Joystick and twist mux

Environment Configuration

Setup Script (config/setup.bash):

This script sets up environment variables and aliases.

Environment Variables:

Variable

Default

Description

ROVO_NS

rovo_unit_071

Robot namespace

Useful Aliases:

# Build and source workspace
rovo_build

CAN Interface Setup

The CAN interface is configured via the rovo_can.bash script:

sudo ip link set can0 down
sudo ip link set can0 type can bitrate 500000
sudo ip link set can0 up

udev Rules

Hardware udev rules are installed at /etc/udev/rules.d/45-mbs.rules for consistent device naming.

Webserver

Coming Soon

Robot Webserver

The ROVO3 features a web-based control interface built with Flask.

Access: http://192.168.131.1:9000

Default Credentials:

  • Username: admin

  • Password: mybotshop

Login

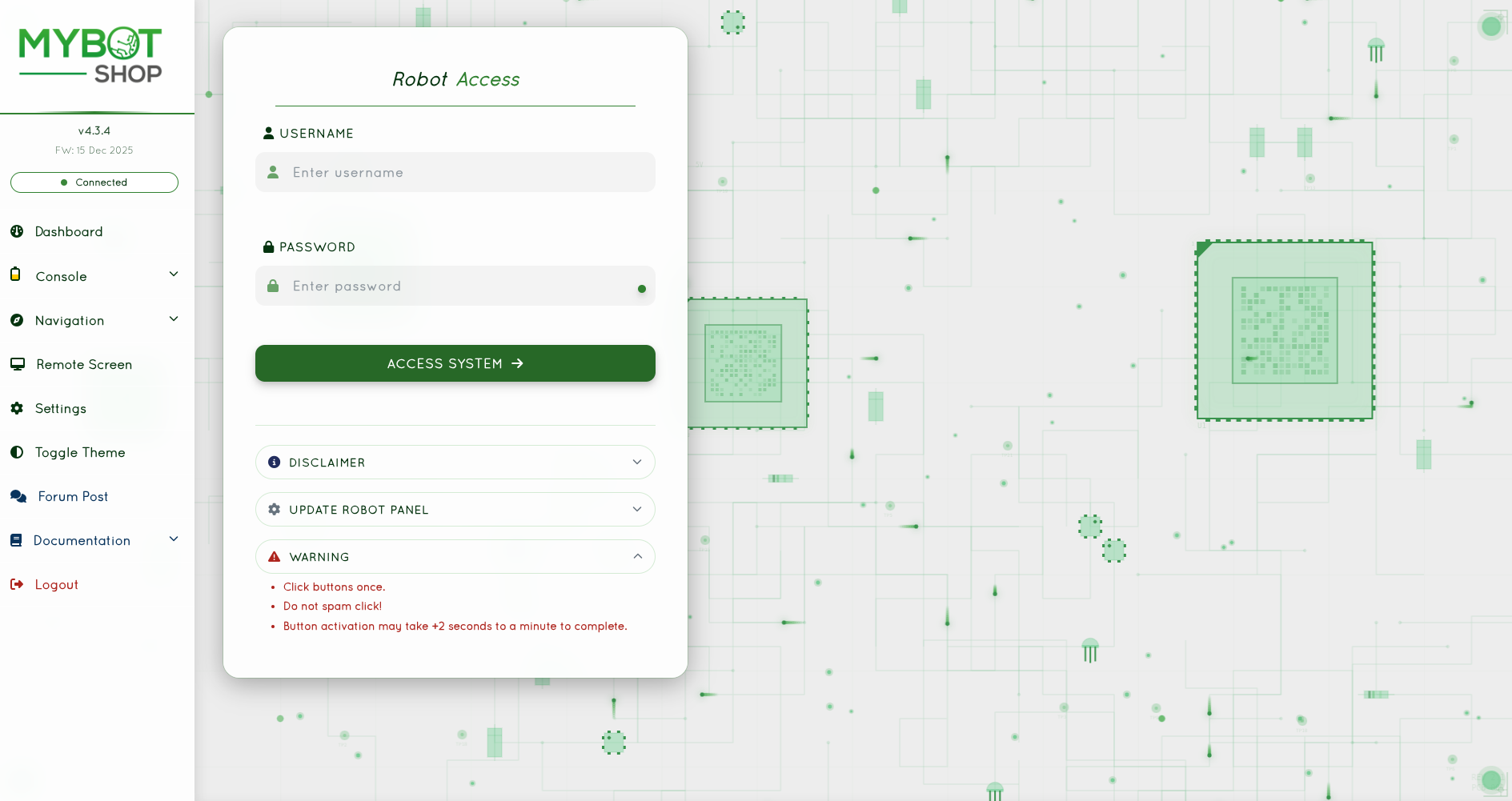

_images/web_login.png

Webserver Login Page

Dashboard

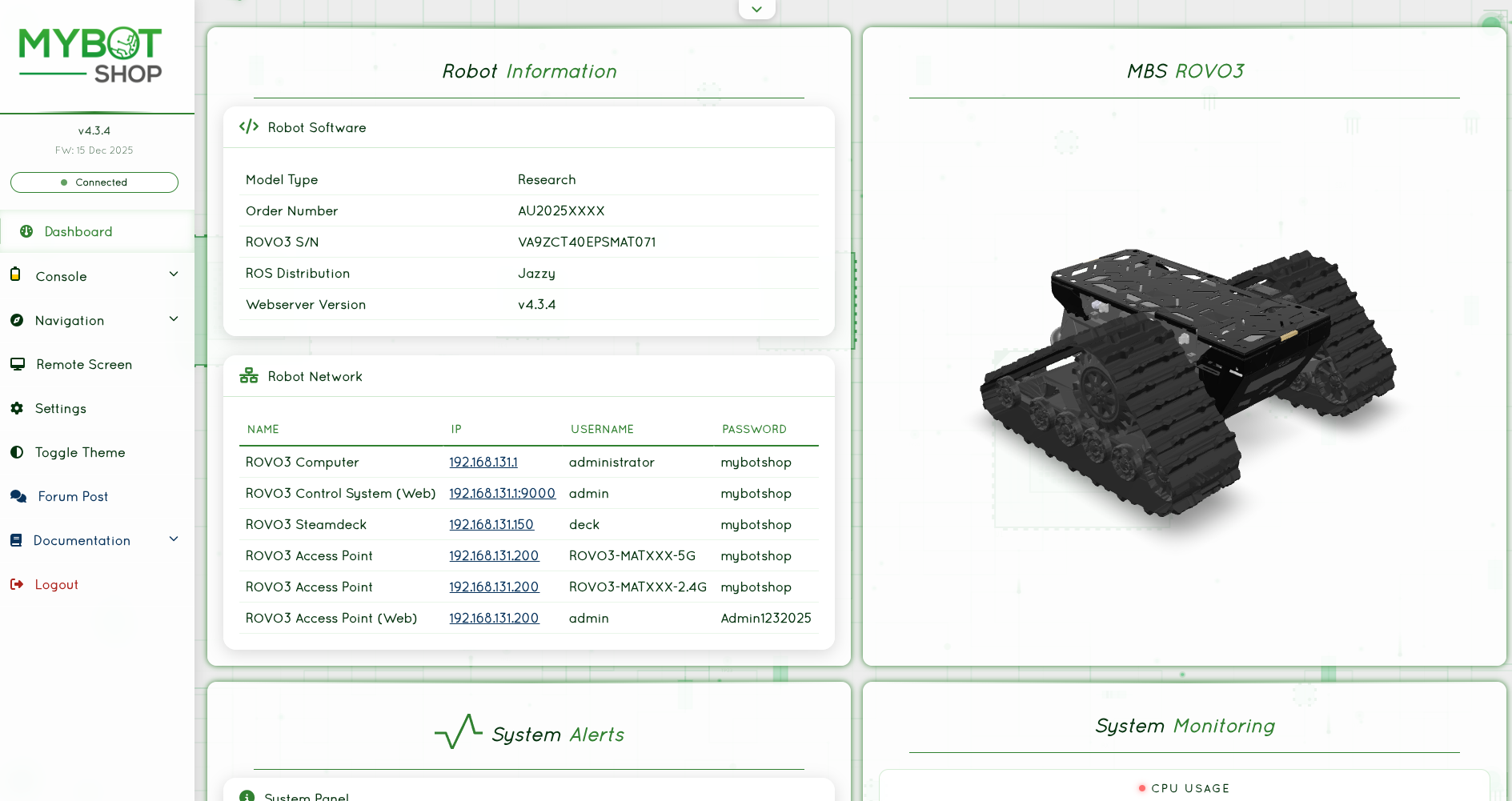

_images/web_dashboard.png

Main Dashboard with 3D Robot Visualization

Features:

Feature

Description

3D Visualization

Real-time robot model via GLTF

Joystick Teleop

Browser-based joystick control

Service Management

Start/stop ROS2 nodes and services

Map Visualization

View navigation maps

Battery Monitoring

Real-time battery state

GPS Waypoints

Record and manage GPS waypoints

Rosbag Recording

Start/stop rosbag recordings

VNC Access

Remote desktop via VNC

System Management

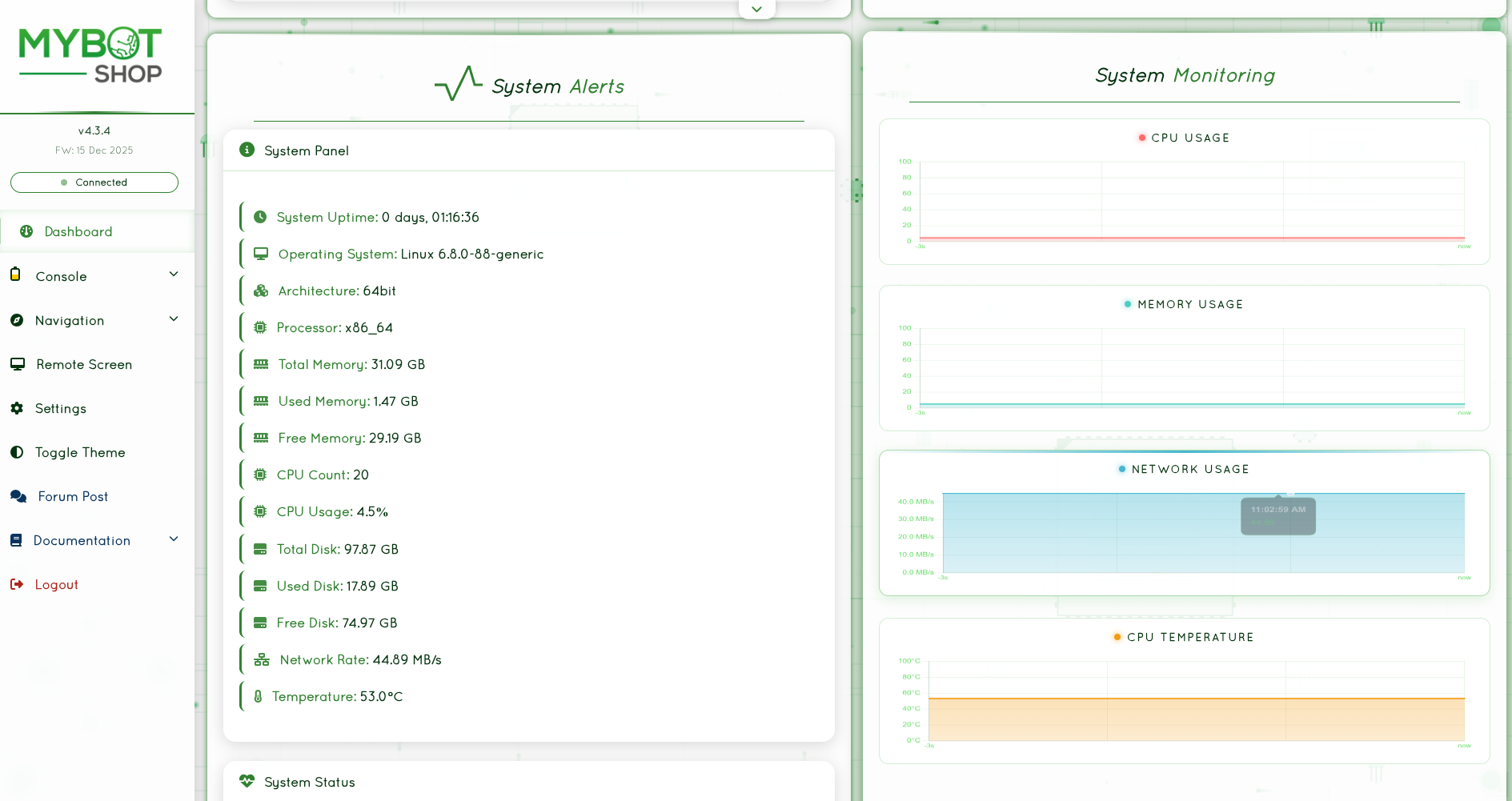

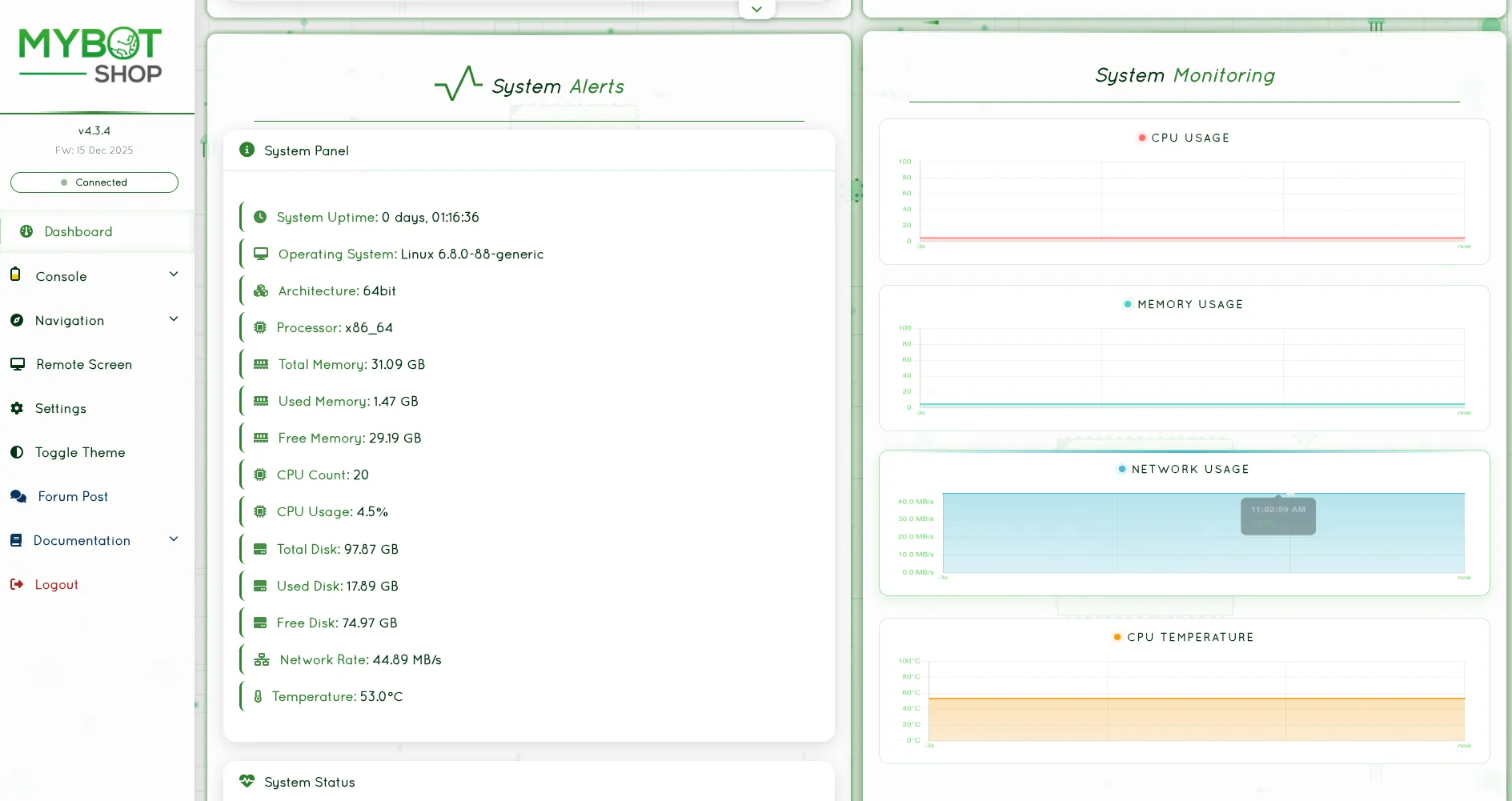

_images/web_system.png

System Management Interface

Console

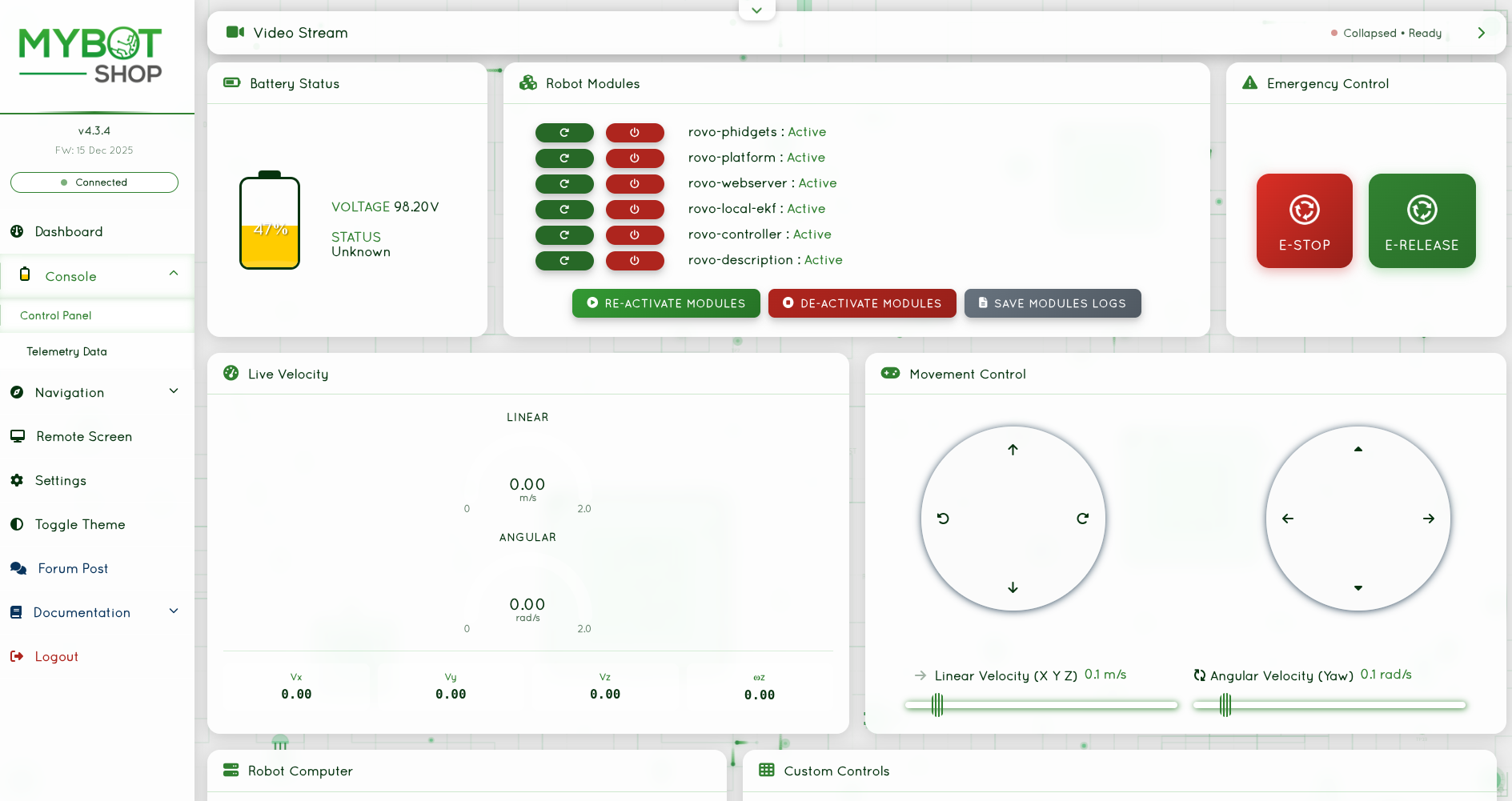

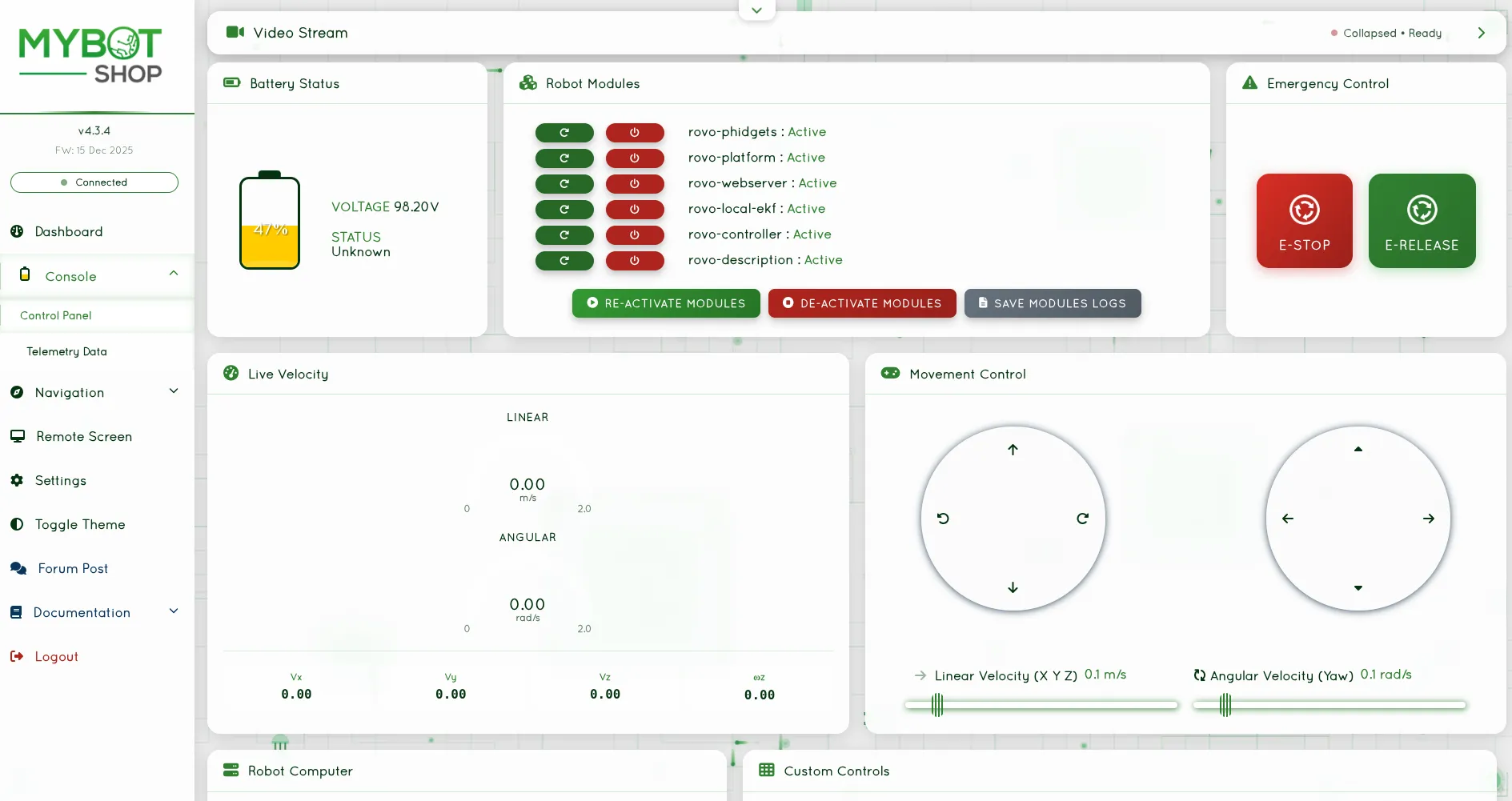

_images/web_console.png

Web Console Interface

Indoor Navigation

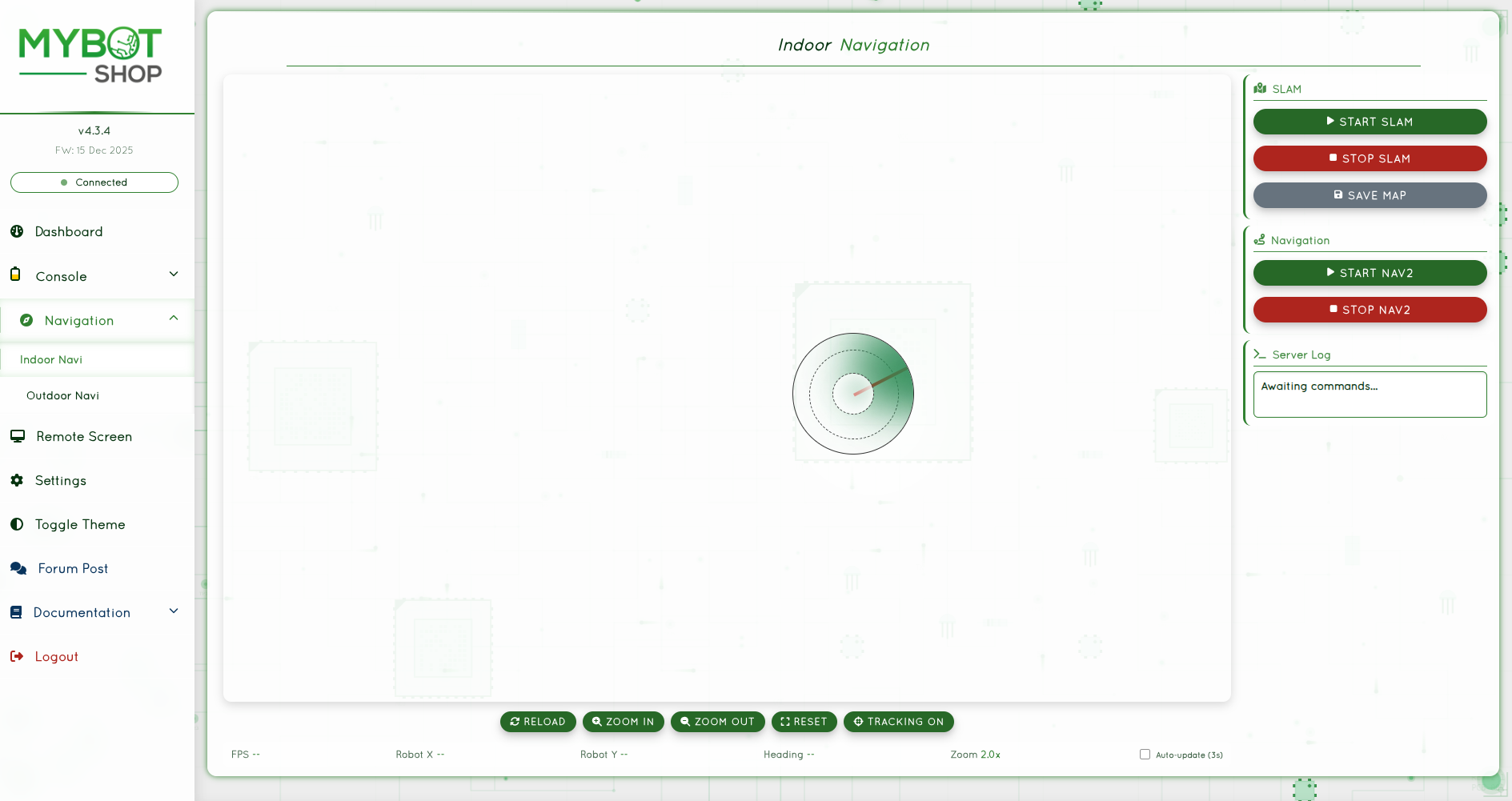

_images/web_nav_indoor.png

Indoor Navigation View

Outdoor Navigation

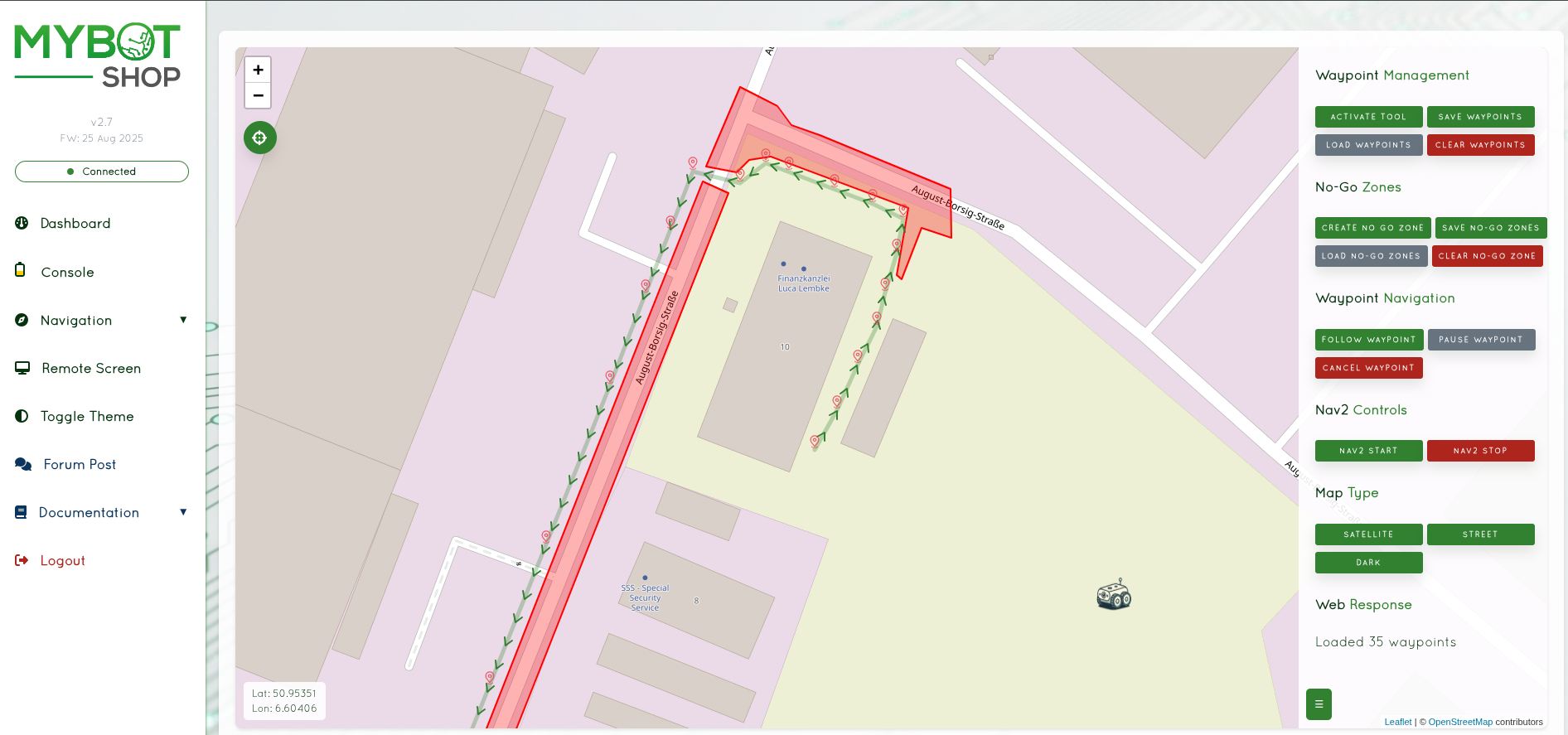

_images/web_nav_outdoor.png

Outdoor Navigation View with GPS

VNC Remote Desktop

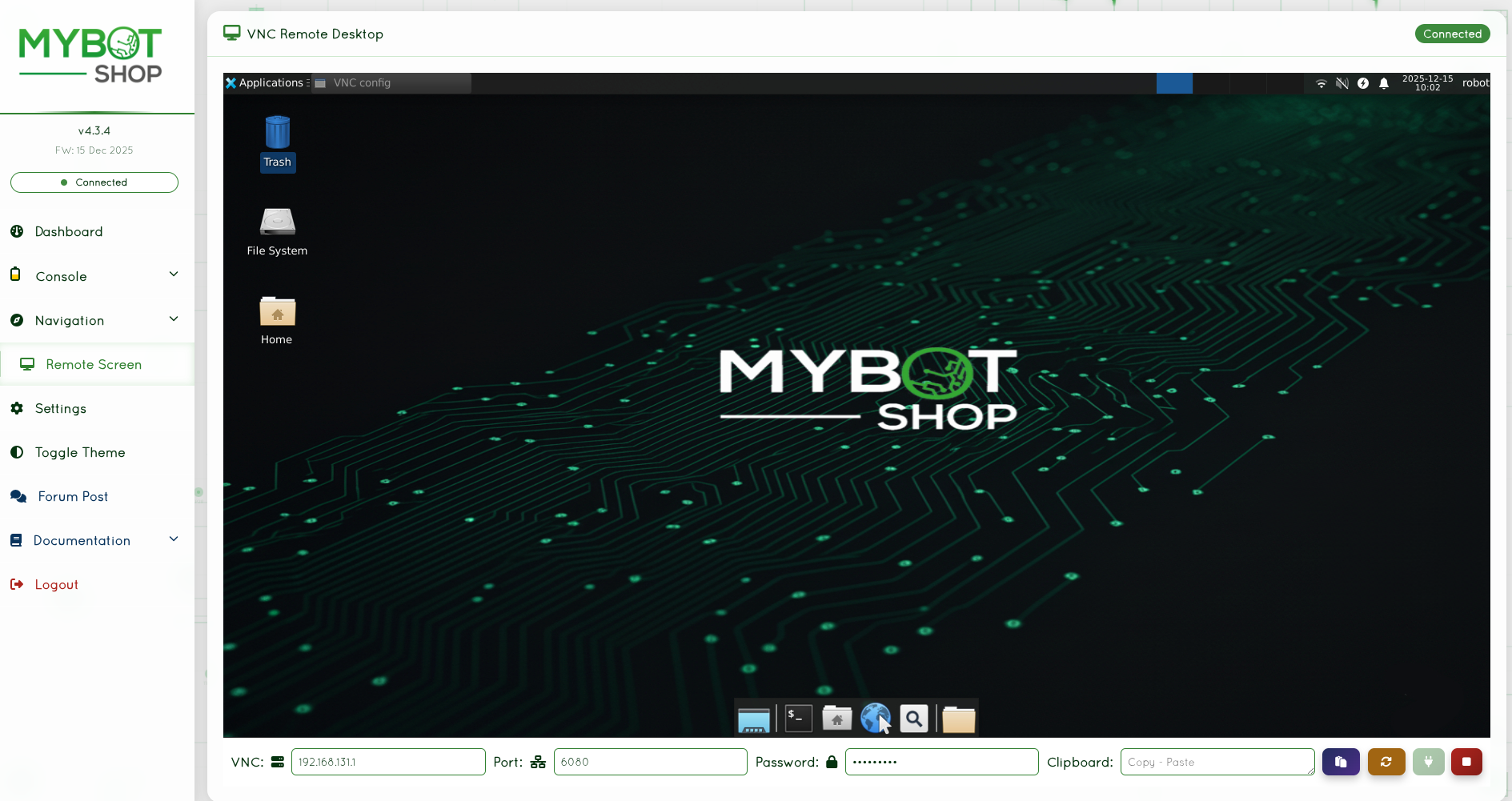

_images/web_vnc.png

VNC Remote Desktop Access

_images/web_vnc_viz.png

VNC with RViz2 Visualization

Configuration (config/robot_webserver.yaml):

Parameter

Description

robot_rosbag_dir

Rosbag storage directory

robot_services

List of controllable services

robot_map_topic

Map topic name

robot_cmd_vel

Velocity command topic

robot_e_stop

Emergency stop topic

robot_gps_topic

GPS topic

robot_battery_topic

Battery state topic

Launch Webserver:

The webserver is typically started automatically via systemd. To launch manually:

ros2 launch rovo_webserver webserver.launch.py

Dependencies:

pip3 install Flask playsound TTS
sudo apt-get install espeak-ng

VNC Setup:

To enable VNC remote desktop:

vncpasswd ~/.vnc/passwd
# Password: mybotshop

Firmware Updates:

The webserver supports firmware updates for the ROS2 workspace:

  1. Navigate to the Firmware Update section

  2. Upload a .zip or .tar.gz archive containing the new workspace

  3. The system automatically:

    • Creates a backup of the current workspace

    • Extracts and replaces the old workspace

    • Rebuilds using colcon build

  4. Restart ROS2 services after update

Teleoperation

Command Line Interface

Command Line Interface

Teleoperate the ROVO3 using the keyboard via ROS2:

Warning

Extreme caution required when using the ROVO3. Please go through the provided manuals before operating.

Prerequisites:

  • Ensure rovo_autostart services are running (check via webserver)

  • Robot platform drivers must be active

  • Do not run duplicate drivers

1. Set Gear

Before moving the robot, set the appropriate gear:

# Set gear to 1 (drive mode)
ros2 service call /$ROVO_NS/platform/set_gear rovo_interface/srv/RovoGear "{gear: 1}"

2. Launch Keyboard Teleop

ros2 run teleop_twist_keyboard teleop_twist_keyboard --ros-args --remap cmd_vel:=/$ROVO_NS/cmd_vel

3. Control Keys

Key

Action

i

Move forward

k

Stop

,

Move backward

j

Turn left

l

Turn right

u

Forward + left

o

Forward + right

m

Backward + left

.

Backward + right

q/z

Increase/decrease speed

4. Return to Neutral

When finished, set the gear back to neutral:

ros2 service call /$ROVO_NS/platform/set_gear rovo_interface/srv/RovoGear "{gear: 0}"

Joystick Control

The ROVO3 supports Logitech joystick control with the following button mapping:

Button

Function

Button 4 (LB)

Enable movement (hold)

Button 5 (RB)

Enable turbo mode

Left Stick Y

Linear X velocity

Right Stick X

Angular Z velocity

Speed Modes:

  • Normal Mode: 0.2 m/s linear, 0.3 rad/s angular

  • Turbo Mode: 1.0 m/s linear, 1.0 rad/s angular

Web Interface Control

Access the webserver at http://192.168.131.1:9000 for browser-based joystick control.

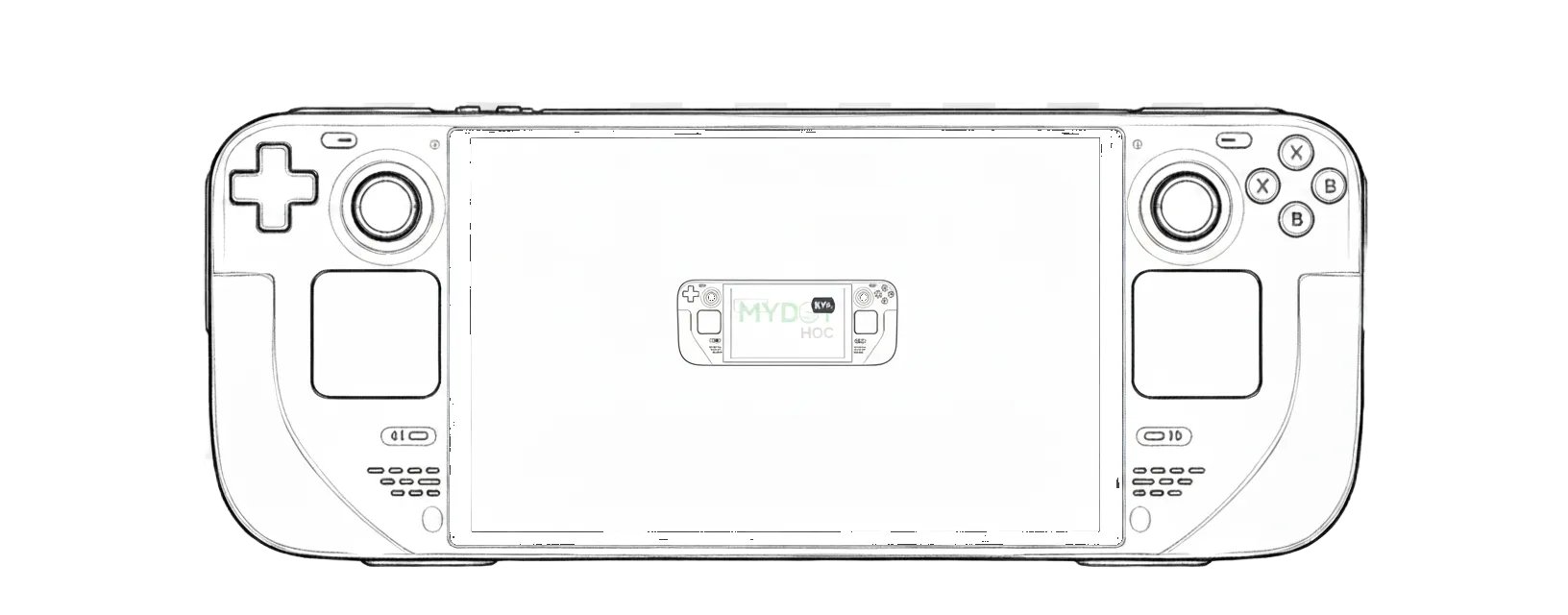

Steamdeck Control

The ROVO3 can be controlled via Steamdeck using the steamdeck_joy_teleop interface.

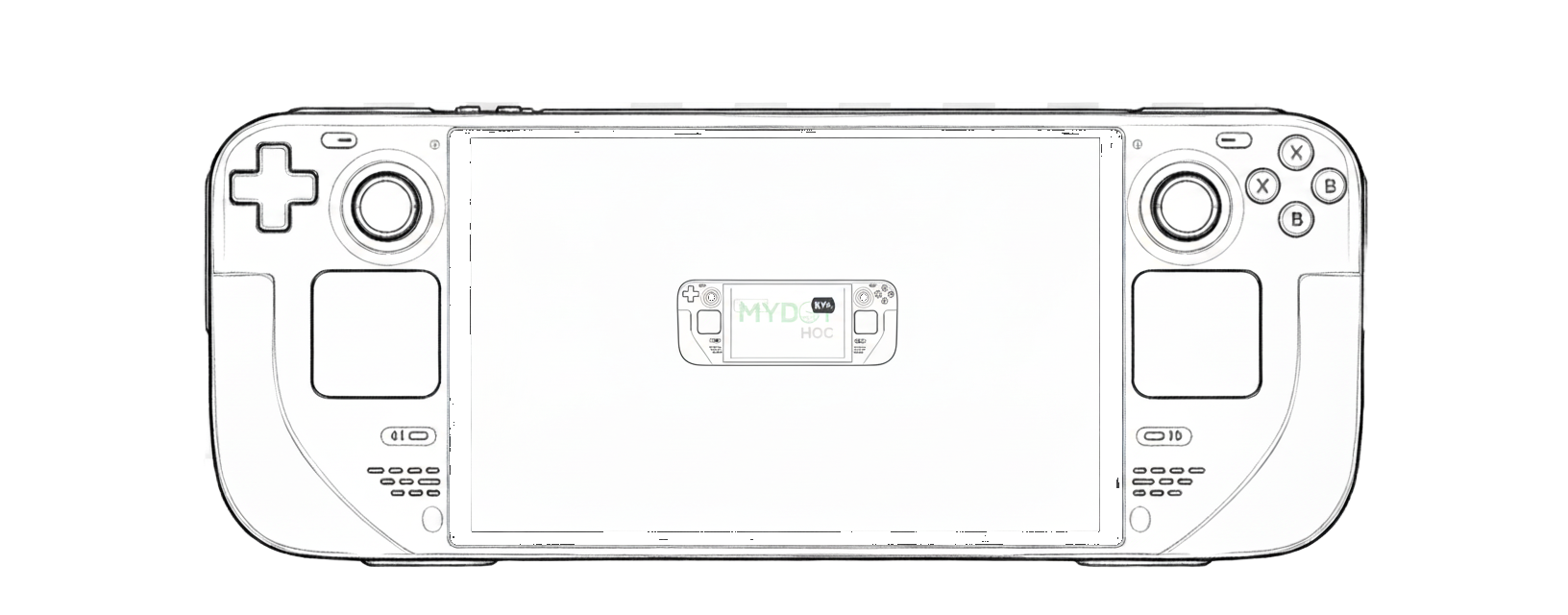

_images/steamdeck.png

Steamdeck Controller Interface

Visualization

RViz2

RViz2

RViz2 is used for visualizing the robot state, sensor data, and navigation information.

_images/rovo3_frame.png

ROVO3 TF Frame Visualization in RViz2

Launch RViz2:

ros2 launch rovo_viz view_robot.launch.py

Available Configurations:

Configuration

Description

robot.rviz

Full robot visualization with navigation

model.rviz

Robot model only

steam.rviz

Steamdeck optimized view

Displayed Elements:

  • Robot model (URDF)

  • TF transforms

  • Odometry

  • LiDAR point cloud

  • Depth camera images

  • Navigation costmaps

  • Path planning visualization

External Host Setup:

To visualize the robot from an external computer:

  1. Build visualization packages:

    colcon build --symlink-install --packages-select rovo_description rovo_viz
source install/setup.bash

  2. Set the robot namespace:

    export ROVO_NS="rovo_unit_071"

  3. Launch RViz2:

    ros2 launch rovo_viz view_robot.launch.py

Note

Ensure your computer is on the same network as the robot and ROS2 DDS discovery is configured properly.

Rigs

Coming Soon

MBS Rig System

The ROVO3 platform supports the MBS Rig System for mounting sensors and accessories.

Rig integration documentation coming soon.

Note

Contact MYBOTSHOP for information about available rig configurations for the ROVO3 platform.

Manipulation

Coming Soon

Robotic Arm Integration

The ROVO3 platform supports integration with robotic manipulators for mobile manipulation applications.

Manipulation documentation coming soon.

Note

Contact MYBOTSHOP for information about supported robotic arm configurations for the ROVO3 platform.

Sensors

Depth Cameras

Lidars

GPS

Auxiliary

Depth Cameras

The ROVO3 supports the Intel RealSense D435i depth camera for RGB-D perception.

Test Native Driver:

ros2 launch realsense2_camera rs_launch.py depth_module.depth_profile:=1280x720x30 pointcloud.enable:=true

Launch via ROVO3 Package:

The camera can be controlled via the webserver or systemctl. When disabled via services, test manually:

ros2 launch rovo_depth_camera realsense.launch.py

Published Topics:

Topic

Type

/camera/color/image_raw

sensor_msgs/Image

/camera/depth/image_rect_raw

sensor_msgs/Image

/camera/depth/color/points

sensor_msgs/PointCloud2

Note

The ROVO3 utilizes the camera’s inbuilt IMU. External USB connection may be required for depth functionality.

Lidars

The ROVO3 supports Ouster OS1-64 LiDAR for 3D perception and mapping.

Network Configuration:

  • Default IP: 192.168.131.20

Launch via ROVO3 Package:

The LiDAR can be controlled via the webserver or systemctl. When disabled via services, test manually:

ros2 launch rovo_lidar ouster.launch.py

Published Topics:

Topic

Type

/ouster/points

sensor_msgs/PointCloud2

/ouster/scan

sensor_msgs/LaserScan

/ouster/imu

sensor_msgs/Imu

Dependencies:

# Install Ouster ROS2 driver
sudo apt-get install ros-jazzy-ouster-ros

For more information, see the Ouster ROS2 driver documentation.

GPS

GPS integration is available for outdoor navigation and waypoint recording. Configuration depends on the specific GPS hardware installed on your ROVO3 unit.

Auxiliary

The ROVO3 platform includes an integrated IMU that publishes orientation and acceleration data.

Published Topic:

  • /<ns>/platform/imu/data (sensor_msgs/Imu)

The BMS provides battery state information.

Published Topic:

  • /<ns>/platform/bms/state (sensor_msgs/BatteryState)

Simulation

Gazebo

Isaac Sim

Gazebo

The ROVO3 uses Gazebo Harmonic for simulation, which is the recommended simulator for ROS2 Jazzy.

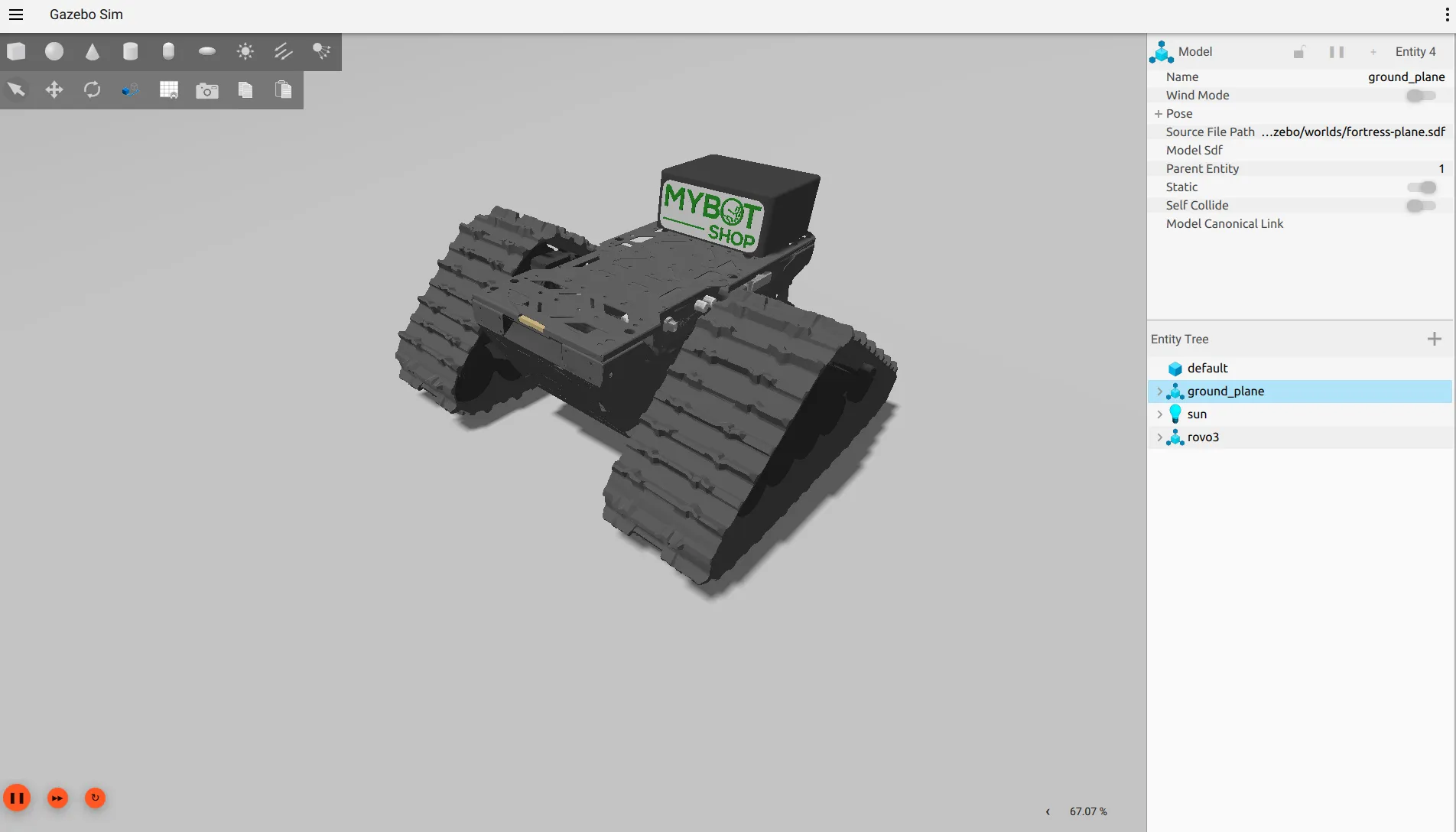

_images/rovo3_gazebo.png

ROVO3 Simulation in Gazebo Harmonic

Launch Simulation:

ros2 launch rovo_gazebo simulation.launch.py

Available Worlds:

World File

Description

fortress-plane.sdf

Flat ground plane (default)

fortress-substation.sdf

Industrial substation environment

fortress-moon.sdf

Lunar terrain

Teleoperate in Simulation:

ros2 run teleop_twist_keyboard teleop_twist_keyboard

Simulated Sensor Topics:

Topic

Type

Description

/clock

rosgraph_msgs/Clock

Simulation time

/odom

nav_msgs/Odometry

Robot odometry

/sensors/imu/data

sensor_msgs/Imu

IMU data

/sensors/d435i/image

sensor_msgs/Image

RGB camera

/sensors/d435i/depth_image

sensor_msgs/Image

Depth image

/sensors/d435i/points

sensor_msgs/PointCloud2

RGB-D point cloud

/sensors/os_sensor/scan

sensor_msgs/LaserScan

LiDAR scan

/sensors/os_sensor/points

sensor_msgs/PointCloud2

LiDAR point cloud

Clean Up Gazebo Processes:

If Gazebo does not close properly, use the cleanup script:

ros2 run rovo_gazebo kill_gz.sh

Dependencies:

sudo apt-get install ros-jazzy-ros-gz ros-jazzy-ros-gz-bridge

For more information, see the Gazebo Harmonic documentation.

Isaac Sim

NVIDIA Isaac Sim integration is planned for future releases. Check back for updates on Isaac Sim support for the ROVO3 platform.

Packages

Robot Description

Twist Mux

EKF Localization

rovo_description

URDF and Xacro robot description files for the ROVO3 tracked robot platform.

Contents:

  • launch/rovo_description.launch.py - Robot state publisher

  • launch/view_robot.launch.py - View URDF in RViz

  • meshes/ - Platform and sensor visual meshes

  • xacro/robot.xacro - Main robot description

Usage:

# Publish robot description
ros2 launch rovo_description rovo_description.launch.py

# Get URDF from Xacro
xacro $(ros2 pkg prefix rovo_description)/share/rovo_description/xacro/robot.xacro

rovo_platform

Hardware driver and control interface for the ROVO3 tracked robot platform. Provides CAN bus communication, motor control, odometry publishing, and ROS2 service interfaces.

Configuration Parameters (config/rovo_platform.yaml):

Parameter

Default

Description

node_id

2

CAN node ID

can_channel

can0

CAN interface name

bitrate

500000

CAN bitrate (500 kbit/s)

wheel_separation

0.92

Distance between tracks (m)

max_speed_mps

1.0

Maximum linear speed (m/s)

drive_diameter

0.35

Drive sprocket diameter (m)

gear_ratio

16.0

Gear ratio (16.0 for i16, 7.0 for i7)

publish_tf

true

Publish TF transforms

Published Topics:

Topic

Type

Description

/<ns>/platform/odom

nav_msgs/Odometry

Robot odometry

/<ns>/platform/joint_states

sensor_msgs/JointState

Track joint states

/<ns>/platform/imu/data

sensor_msgs/Imu

IMU data

/<ns>/platform/bms/state

sensor_msgs/BatteryState

Battery state

Subscribed Topics:

Topic

Type

Description

/<ns>/platform/cmd_vel

geometry_msgs/Twist

Velocity commands

Services:

Service

Type

Description

/<ns>/platform/set_gear

rovo_interface/RovoGear

Set gear (0=neutral, 1-3=drive)

/<ns>/platform/set_mode

rovo_interface/RovoModes

Set operating mode

Usage:

ros2 launch rovo_platform rovo_driver.launch.py

# Set gear
ros2 service call /$ROVO_NS/platform/set_gear rovo_interface/srv/RovoGear "{gear: 1}"

rovo_controller

Joystick teleoperation and command multiplexing for the ROVO3 platform.

Twist Mux Priority Table:

Priority

Source

Topic

255

E-Stop (Lock)

e_stop

25

Logitech Joystick

joy_teleop/cmd_vel

20

Steamdeck

steamdeck_joy_teleop/cmd_vel

15

Web Interface

webserver/cmd_vel

10

Interactive Marker

twist_marker_server/cmd_vel

5

External

cmd_vel

3

Autonomous (High)

autonomous_high_priority/cmd_vel

2

Autonomous (Mid)

autonomous_mid_priority/cmd_vel

1

Autonomous (Low)

autonomous_low_priority/cmd_vel

Logitech Joystick Button Mapping:

Button

Function

Button 4 (LB)

Enable movement

Button 5 (RB)

Enable turbo mode

Left Stick Y

Linear X velocity

Right Stick X

Angular Z velocity

Speed Settings:

Mode

Linear (m/s)

Angular (rad/s)

Normal

0.2

0.3

Turbo

1.0

1.0

rovo_gazebo

Gazebo Harmonic simulation package for the ROVO3 platform.

Available Worlds:

  • fortress-plane.sdf - Flat ground plane (default)

  • fortress-substation.sdf - Industrial substation environment

  • fortress-moon.sdf - Lunar terrain

Simulated Topics (GZ -> ROS):

Topic

Type

Description

/clock

rosgraph_msgs/Clock

Simulation time

/odom

nav_msgs/Odometry

Robot odometry

/sensors/imu/data

sensor_msgs/Imu

IMU data

/sensors/d435i/image

sensor_msgs/Image

RGB camera

/sensors/d435i/depth_image

sensor_msgs/Image

Depth image

/sensors/d435i/points

sensor_msgs/PointCloud2

RGB-D point cloud

/sensors/os_sensor/scan

sensor_msgs/LaserScan

LiDAR scan

/sensors/os_sensor/points

sensor_msgs/PointCloud2

LiDAR point cloud

rovo_navigation

Nav2-based navigation stack for the ROVO3 platform.

Launch Files:

Launch File

Description

slam.launch.py

SLAM mapping mode

odom_navi.launch.py

Odometric navigation (no map)

map_navi.launch.py

Map-based autonomous navigation

Configuration Files:

  • param/nav2_slam.yaml - SLAM parameters

  • param/nav2_odom.yaml - Odometry navigation parameters

  • param/nav2_map.yaml - Map navigation parameters

  • behavior_trees/nav_to_pose.xml - Custom behavior tree

rovo_viz

RViz2 visualization package with pre-configured displays.

RViz Configurations:

  • rviz/robot.rviz - Full robot visualization with navigation

  • rviz/model.rviz - Robot model only

  • rviz/steam.rviz - Steamdeck optimized view

rovo_autostart

System bringup and automatic startup configuration.

Files:

  • config/setup.bash - Environment variables and aliases

  • config/startup.bash - Startup script

  • config/rovo_can.bash - CAN interface setup

  • debian/45-mbs.rules - udev rules for hardware

  • scripts/startup_installer.py - Systemd service installer

Environment Variables:

Variable

Default

Description

ROVO_NS

rovo_unit_071

Robot namespace

rovo_webserver

Web-based robot control interface with Flask backend.

Features:

  • Real-time robot visualization (3D model via GLTF)

  • Joystick teleoperation

  • Service management (start/stop ROS nodes)

  • Map visualization

  • Battery monitoring

  • GPS waypoint recording

  • Rosbag recording

  • VNC remote desktop access

Access: http://192.168.131.1:9000

rovo_interface

Custom ROS2 service definitions for the ROVO3 platform.

RovoGear.srv:

int32 gear      # 0=neutral, 1-3=drive gears
---
bool success
string message

RovoModes.srv:

string request_data
---
bool success
string reason

Usage:

# Set gear to 1
ros2 service call /$ROVO_NS/platform/set_gear rovo_interface/srv/RovoGear "{gear: 1}"

# Set mode
ros2 service call /$ROVO_NS/platform/set_mode rovo_interface/srv/RovoModes "{request_data: 'auto'}"

Debugging

Coming Soon

RQT

RQT provides a GUI framework for ROS2 debugging tools.

Launch RQT:

ros2 run rqt_gui rqt_gui --ros-args --remap tf:=/$ROVO_NS/tf --remap tf_static:=/$ROVO_NS/tf_static

Available Plugins:

  • Topic Monitor

  • Service Caller

  • Parameter Reconfigure

  • Node Graph

  • TF Tree

Dynamic Reconfigure

Use dynamic reconfigure to adjust parameters at runtime:

ros2 run rqt_gui rqt_gui --ros-args --remap tf:=/$ROVO_NS/tf --remap tf_static:=/$ROVO_NS/tf_static

From the GUI, select Plugins > Configuration > Dynamic Reconfigure.

TF

TF Tree Visualization:

ros2 run rqt_tf_tree rqt_tf_tree --force-discover \
  --ros-args --remap tf:=/$ROVO_NS/tf --remap tf_static:=/$ROVO_NS/tf_static

Generate TF Frames PDF:

ros2 run tf2_tools view_frames.py --force-discover \
  --ros-args --remap tf:=/$ROVO_NS/tf --remap tf_static:=/$ROVO_NS/tf_static

Topic Debugging

List all topics:

ros2 topic list

Echo a topic:

ros2 topic echo /$ROVO_NS/platform/odom

Check topic frequency:

ros2 topic hz /$ROVO_NS/platform/odom

Service Debugging

List all services:

ros2 service list

Call a service:

ros2 service call /$ROVO_NS/platform/set_gear rovo_interface/srv/RovoGear "{gear: 0}"

Node Debugging

List all nodes:

ros2 node list

Get node info:

ros2 node info /rovo_platform

CAN Debugging

Test CAN Module:

# Configure CAN interface
sudo ip link set can0 down
sudo ip link set can0 type can bitrate 500000
sudo ip link set can0 up

# Monitor CAN traffic
sudo candump can0

Miscellanious

Coming Soon

Sync Host and Robot

Synchronize files between host computer and robot using rsync:

Sync to Robot:

rsync -avP -t --delete -e ssh src robot@192.168.131.1://opt/mybotshop

Sync to Steamdeck:

rsync -avP -t --delete -e ssh src deck@192.168.131.150://home/deck/ros2_ws

Core Launch Files

Warning

Do not run these files manually as they should already be running via the webserver!

These launch files are managed by systemd services and the webserver:

Platform Driver:

ros2 launch rovo_platform rovo_driver.launch.py

Webserver:

ros2 launch rovo_webserver webserver.launch.py

Controller:

ros2 launch rovo_controller controller.launch.py

Robot Description:

ros2 launch rovo_description rovo_description.launch.py

CAN Hardware Connections

Recommended Parts:

  • Primary: Part 1-1564337-1

  • Backup: Part 967650-1

Pin Mapping:

ROVO

Peak-USB

Pin1 Can2 Low

Pin2 Can Low

Pin2 Can2 High

Pin7 Can High

Pin3 Can Gnd

Pin3 Can Gnd

Useful Commands

Build Workspace:

cd /opt/mybotshop
colcon build --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Release
source install/setup.bash

Quick Build Alias:

rovo_build

Check ROS2 Environment:

printenv | grep ROS

Source Workspace:

source /opt/mybotshop/install/setup.bash

Installation

Installation Robot

Installation External

Installation Robot

The ROVO3 comes pre-installed with ROS2 Jazzy. For a fresh installation or re-installation, follow these steps:

1. Set Robot Hostname

sudo hostnamectl set-hostname rovo-unit-071

2. Create Workspace Directory

sudo mkdir /opt/mybotshop && sudo chown -R robot:robot /opt/mybotshop

3. Clone and Install

Clone the repository to the robot’s PC and run the installer:

cd /opt/mybotshop/src/mybotshop/robot_installer
sudo chmod +x total_install.sh
sudo ./total_install.sh

4. Build ROS2 Workspace

cd /opt/mybotshop
colcon build --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Release
source install/setup.bash

5. Install Startup Services

ros2 run rovo_autostart startup_installer.py

6. Disable System Suspend

sudo systemctl mask sleep.target suspend.target hibernate.target hybrid-sleep.target
sudo systemctl disable systemd-networkd-wait-online.service
sudo systemctl mask systemd-networkd-wait-online.service

7. Configure Network

Edit the netplan configuration:

sudo nano /etc/netplan/01-network-manager.yaml

Add the following configuration:

network:
  version: 2
  renderer: NetworkManager
  bridges:
    br0:
      interfaces:
        - eno1
        - enp3s0
      dhcp4: no
      addresses:
        - 192.168.131.1/24
      nameservers:
        addresses:
          - 8.8.8.8
          - 1.1.1.1
      parameters:
        stp: false
        forward-delay: 0
      optional: true

  ethernets:
    eno1:
      dhcp4: no
      optional: true
    enp1s0:
      dhcp4: no
      optional: true

Apply the configuration:

sudo netplan apply

Installation External

For external (host) computers that need to visualize and interact with the ROVO3:

1. Clone the Repository

Clone the ROVO3 repository into your ROS2 workspace.

2. Build Essential Packages

colcon build --symlink-install --packages-select rovo_description rovo_viz
source install/setup.bash

3. Set Environment and Launch

export ROVO_NS="rovo_unit_071"
ros2 launch rovo_viz view_robot.launch.py

Dependencies

Install the required ROS2 packages:

sudo apt-get install ros-jazzy-urdf ros-jazzy-xacro \
                     ros-jazzy-joint-state-publisher ros-jazzy-robot-state-publisher \
                     ros-jazzy-joy ros-jazzy-teleop-twist-joy ros-jazzy-twist-mux \
                     ros-jazzy-navigation2 ros-jazzy-nav2-bringup \
                     ros-jazzy-ros-gz ros-jazzy-ros-gz-bridge
